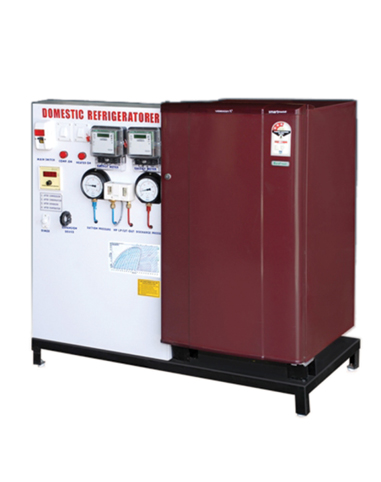

Domestic Refrigeration Trainer
Range Of Experiment
• To study construction and working
of domestic refrigerator
• To evaluate cooling capacity of the
refrigerator at the ambient
temperature.
• To evaluate the actual Coefficient
of Performance of the refrigeration
system.
• To evaluate the theoretical
Coefficient of Performance of the
refrigeration system.
• To plot the cycle on P-H chart.
Technical Details
| Sub-Title | Parameter |
|---|---|
| Capacity | 165 Liters Minimum |
| Refrigerator | Standard make. |
| Power Source | 220- 240 V ; 50HZ; 1 Phase, AC |
| Freezer | Ice Trays Provided Component Shelf provided. Freezer door rack. |
| Refrigerator | Storage Shelves Provided (2 Shelves) Shelf-half adjustable/full folding provided. Shelf Eggs provided Shelf Bottle provided Crisper Provided Glass Shelf Provided |
| Heater for load | Provided |
| Energy Meter Compressor | Provided |
| Energy Meter Heater | Provided |
| HP/LP Cutout | Provided |
| Pressure Gauges | 2 Nos Provided 1 No. for suction gas pressure 1 No for discharge gas pressure |
| Temperature | Digital Temperature Indicator with selector to display refrigerant temperatures at salient points |
| Refrigerant | R-134 a Non CFC & Environment friendly |
