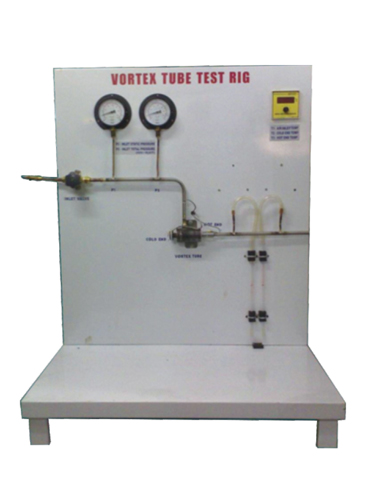

Vortex Tube Trainer
Range Of Experiment
• To understand the principle of working Vortex Tube.
• To evaluate Adiabatic Efficiency of the system.
• To evaluate C.O.P. of the system.
• To find out Refrigeration Effect per kg of air supplied.
Technical Details
| Sub-Title | Parameter |
|---|---|
| Model | Vortex Tube Trainer |
| Material of construction | Brass /GI/ SS tube With inlet nozzle of the vortex tube |
| Temperature measurement | Digital led display provided |
| Pressure measurement | Dial type pressure gauge provided or manometer |
| Arrangement for air flow measurement | Provided. |
| Air flow variation | Valve provided |
| General arrangement | Integral unit mounted on suitable panel. |
| Supply | Compressed air supply at 10 bar |
